Product Description
Structure: This machine is composed of feeding hopper, crushing device, screw device, support device, filtering screen, juicing container and fruit residue discharging spout, etc.
Working Principle: There is the crushing device on the feeding hopper, the crushing device will crush the fruit into 2-3mm by blades, and then the crushed fruit will enter the juicing system directly, which will improve the juicing capacity highly.
Product Parameters
| Model | Size (mm) | Power (kw) | Juice yield | Capacity |
| TPP-ZZ5 | 1150*450*1450 mm | 1.5+1.5kw,220V 1.5+1.5KW, 380V | 50% | 0.5ton/h |
| TPP-ZZ10 | 1300*500*1550 mm | 1.5+3kw | 50% | 1ton/h |
| TPP-ZZ15 | 1350*550*1750mm | 1.5+4kw, 380V | 50% | 1.5ton/h |
| TPP-ZZ25 | 1580*760*2050mm | 4+11kw 380V | 50% | 2-3ton/h |

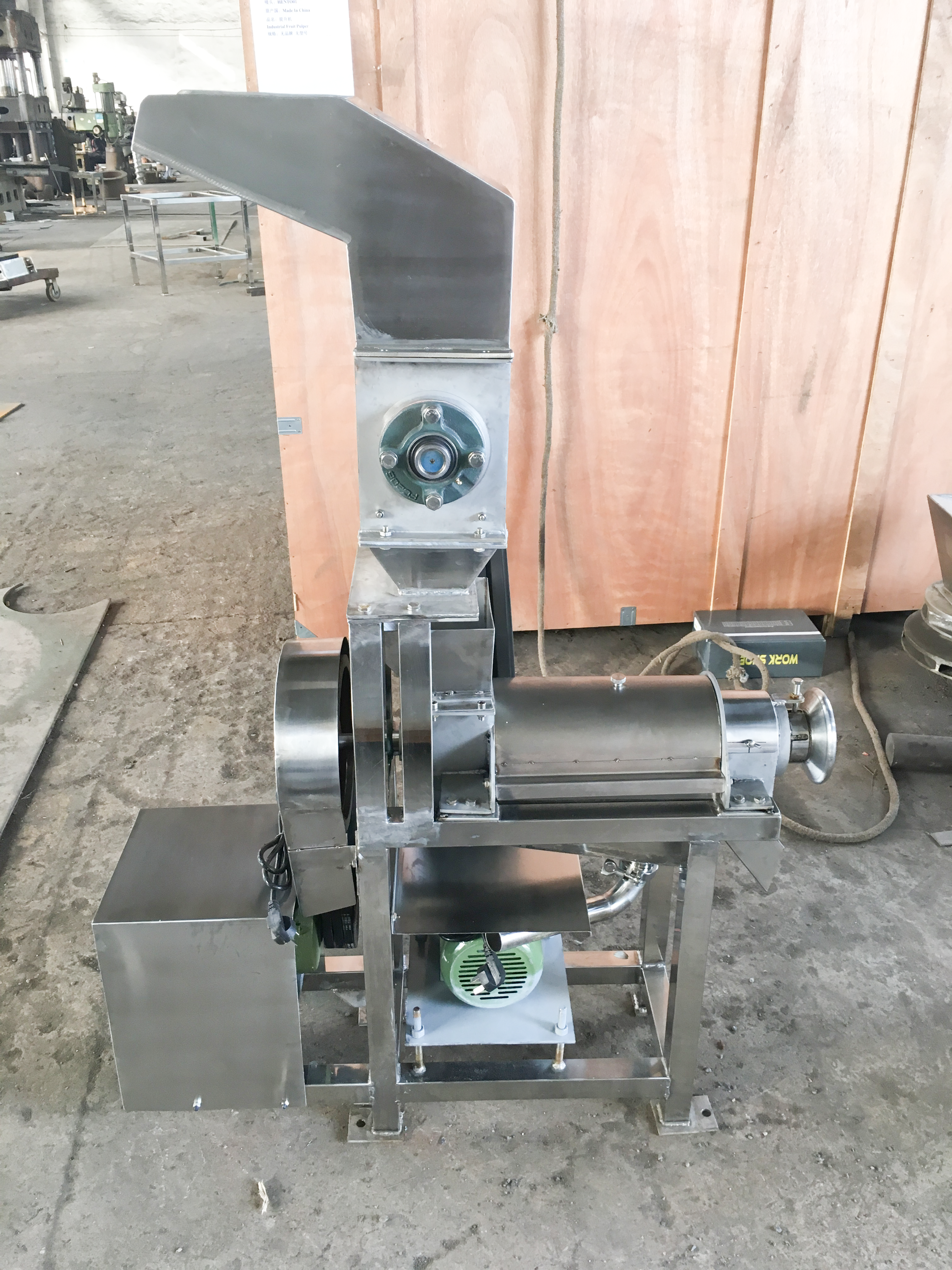

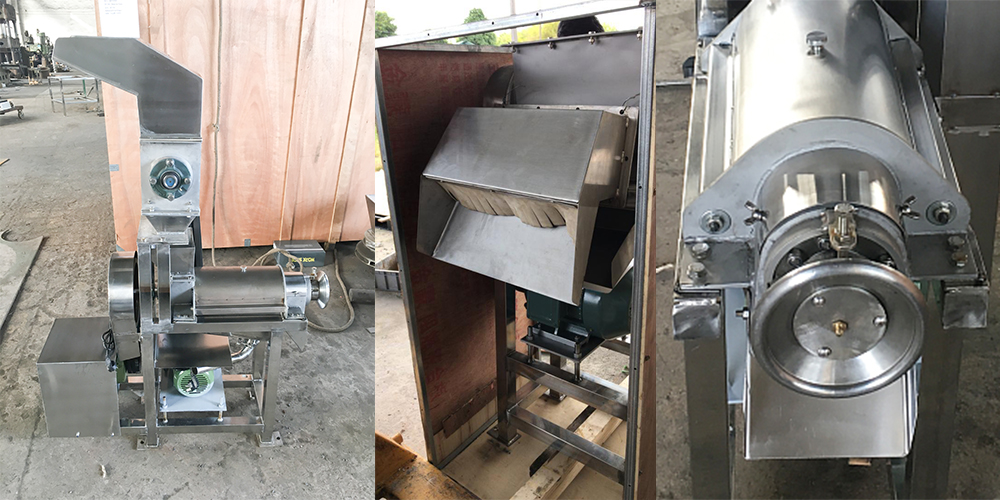

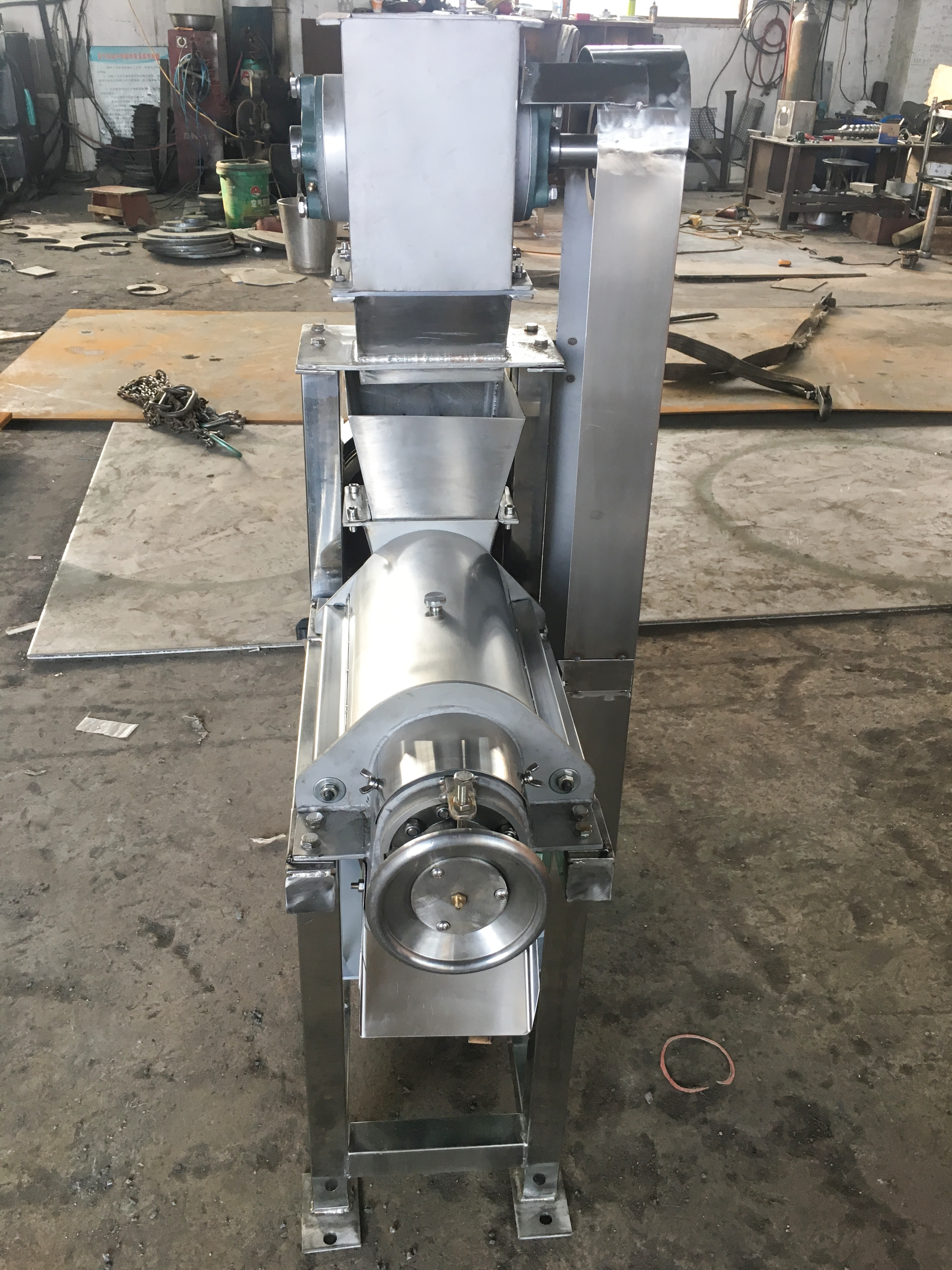

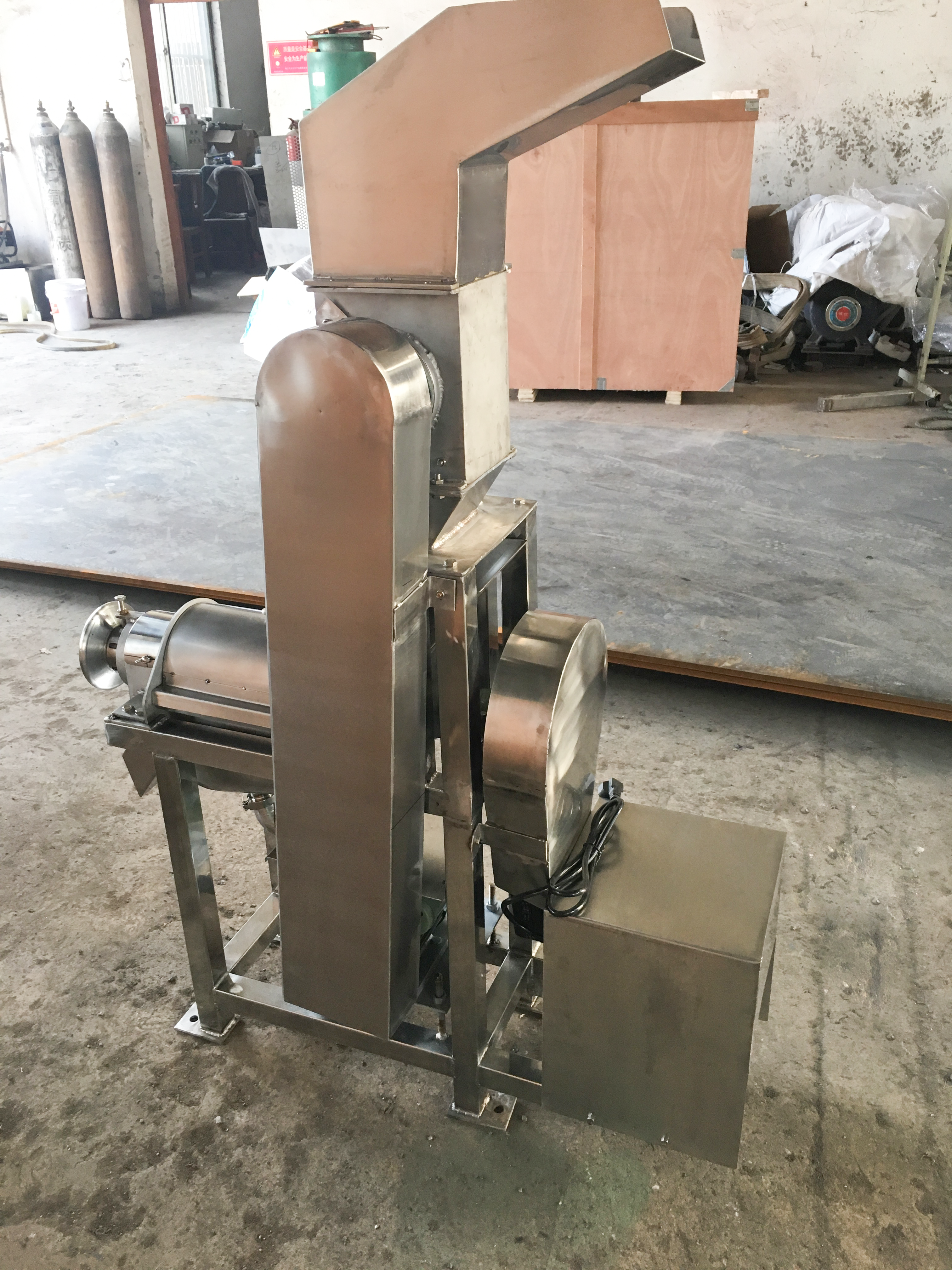

Product Pictures
